BLOWERS

Ring Blowers

USEFUL CONVERSIONS DATA:
  • 1 Mbar= 0.402 in H2O = 10.2mm H2O=0.0295 in.Hg=0.75 mm Hg = 0.0145 psi =100 Pa=10 daPa = 100 N/m2 = 0.750 Torr
  • 1 M3/Hr.= 0.588 CFM.= 35.31 Ft3/Hr = 16.67 L/Min
  • 1 KW = 1.34 HP = 1000 W
USEFUL CONVERSIONS LINK:

High Pressure Blowers / High Vacuum Blowers - Data Summary

TD-3: For 220AC / 50Hz / 1 phase Model Click here

TD-4: For 115VAC / 50Hz / 1 Phase Model Click here

FOR MODELS 21V / 23V / 41V / 42V / 43V / 49V / 51V / 53V / 59V

(115VAC/50Hz/1 Phase)

MODEL NO STAGE
POWER
(Kw)
MAX FLOW
(m3/Hr)
MAX PRESSURE
(mbar)
MAX VACUUM
(mbar)
MAX CURRENT
(amp)
NOISE
(db)
WEIGHT
(kg)
DIMENSIONS L X W X H
(mm X mm X mm)
21-VPLEASE CONTACT US FOR FURTHER DETAILS SINGLE 0.37 80 110 -110 5.4 53 11 255 X 246 X 247
23-VPLEASE CONTACT US FOR FURTHER DETAILS SINGLE 0.37 101 110 -110 5.4 54 11 267 X 246 X 247
49-V SINGLE 0.5 142 90 -80 10 64 16 292 X 285 X 311
49-VPLEASE CONTACT US FOR FURTHER DETAILS SINGLE 1.1 142 120 -110 14.6 63 17 292 X 285 X 311
41-VPLEASE CONTACT US FOR FURTHER DETAILS SINGLE 1.1 148 190 -150 14.6 63 16 292 X 285 X302
42-VPLEASE CONTACT US FOR FURTHER DETAILS DOUBLE 1.5 150 260 -250 22 66 27 401 X 321 X 315
43-VPLEASE CONTACT US FOR FURTHER DETAILS SINGLE 1.1 180 170 -170 14.6 64 16 311 X 285 X 302
59-V SINGLE 1.2 210 130 -110 7.9 64 21 346 X 334 X 365
51-VPLEASE CONTACT US FOR FURTHER DETAILS SINGLE 1.5 210 200 -190 22 64 26 346 X 334 X 337
53-VPLEASE CONTACT US FOR FURTHER DETAILS SINGLE 1.5 270 120 -140 22 65 26 365 X 334 X 337

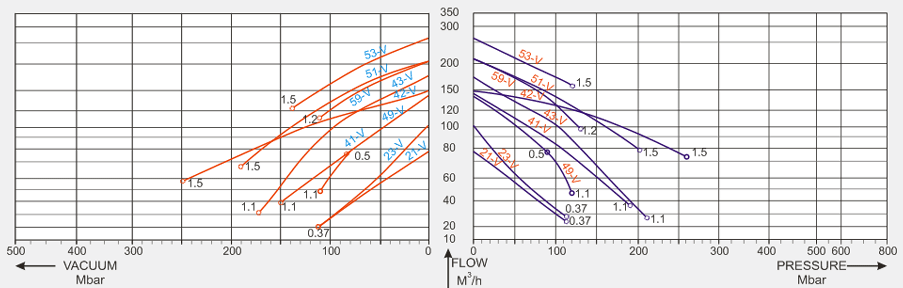

PERFORMANCE CURVES
