Technical Information

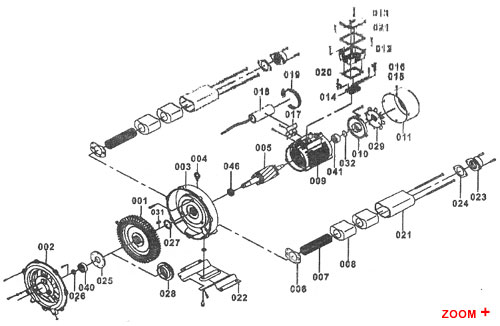

Ring Blowers Exploded View Single Stage


NO Parts name
001 Impeller
002 compressor cover
003 compressor housing
004 Bronze ring
005 Rotor
006 Silencer washer
007 Silencer mesh pipe
0008 Silencer sponge
009 Motor
010 Motor cover
011 Fan cover
012 Terminal box
013 Terminal box cover
014 Wire socket
015 Fixed slice
016 Wire connection slice
017 Capacitor stator
018 Capacitor
019 Steel clip
020 Terminal box washer
021 Silencer housing
022 Mounting plate
023 Inlet/Outlet
024 Inlet/Outlet washer

NO Parts name
025 Bearing washer
026 washer
027 washer
028 Bearing socket
029 Fan
031 Rotor pin
032 wave washer
040 Front bearing
041 Back bearing
045 Cover
046 Oil seal
