BLOWERS

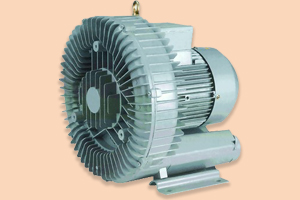

Ring Blowers

Ring Blowers / Side Channel Blowers / Regenerative Blowers / Turbine Blowers / Vortex Blowers / Vacuum Blowers / High Pressure Blowers / High Vacuum Blower / Ring Compressor / Lateral Channel Blowers
The Ring Blowers are suitable for all those applications requiring considerably higher pressure, than those which can be achieved using centrifugal blower.

 Power Rating :  0.20kw To 25kw
 Maximum Flow :  2050 M3/hr
 Maximum Pressure :  670 Mbar
 Maximum Vacuum :  460 Mbar
USEFUL CONVERSIONS DATA:
  • 1 Mbar= 0.402 in H2O = 10.2mm H2O=0.0295 in.Hg=0.75 mm Hg = 0.0145 psi =100 Pa=10 daPa = 100 N/m2 = 0.750 Torr
  • 1 M3/Hr.= 0.588 CFM.= 35.31 Ft3/Hr = 16.67 L/Min
  • 1 KW = 1.34 HP = 1000 W
USEFUL CONVERSIONS LINK:

Features Of Blowers


Ring Blowers / Side Channel Blowers / Regenerative Blowers / Turbine Blowers / Vortex Blowers / Vacuum Blowers / High Pressure Blowers / High Vacuum Blower / Ring Compressor / Lateral Channel Blowers Data Summary

The Ring Blowers / Side Channel Blowers / Regenerative Blowers / Turbine Blowers / Vortex Blowers / Vacuum Blowers / High Pressure Blowers / High Vacuum Blower / Ring Compressor / Lateral Channel Blowers are suitable for all those applications requiring considerably higher pressure, than those which can be achieved using centrifugal fans. Side Channel exhausters are used in all those applications requiring an operating vacuum higher than the one achievable by a fan, but not as to require the use of a vacuum pump. The rotating parts are not in contact with the casing. There is, therefore, no friction during operation and thus no internal lubrication is necessary. The other main features are:

  • Higher Pressure Ratio
  • 100% Oil-Free Continuous High Pressure Air Flow
  • Blower Can Be Used For Pressure Or Vacuum Applications
  • Low Noise Level (65dba Normal, 85 dba Max.)
  • 110% Overload Protection
  • ±10% Voltage Fluctuation Tolerance
  • Rated For Continuous 24 X 7 Duty
  • IP 55 Protection
  • Class F Insulation
  • Motor Design compatible with VFD Drive For Easily Accommodating Operating Condition Changes
  • Impeller Directly Mounted on Motor Shaft Eliminates Maintenance Issues Like Change Of Gears, Pulleys, Belts
  • Pressure Die Casted Aluminum Alloy Body, Impeller & Rotor
  • Dust Proof Polymer Shaft Seal
  • Low Temperature Rise
  • Pulsation- Free Discharge
  • Light And Compact But Sturdy Aesthetically Appealing Design
  • CNC Machined For Close Tolerances And Better Performance
  • Dynamically Balanced Impeller Assembly For Longer Vibrations Free Life
  • High Temperature Grease Filled And Double Sealed NSK/SKF Bearings
  • For Trouble Free Operation For Long Periods
  • Space Efficient Easy Installation In Vertical Or Horizontal Position
  • With Built In Inlet And Outlet Silencers
  • Minimal And Simple Maintenance
  • Suitable For Environmental Protection

Application Of Blowers


The Ring Blowers / Side Channel Blowers / Regenerative Blowers / Turbine Blowers / Vortex Blowers / Vacuum Blowers / High Pressure Blowers / High Vacuum Blower / Ring Compressor / Lateral Channel Blowers are suitable for very wide field of application some of them are

  • Waste Disposal / Slurry Declogging In Waste

  • Pneumatic Conveying of Solids / Liquids

  • Vacuum Transfer of Components / Sheets / Liquids

  • Blowing Away Debris / Sucking Away Debris

  • Industrial Vacuum Cleaning

  • Furnace Fuel Burning / Oil Atomization

  • Air Bearing / Air Mattress

  • Medical / Dental Suction Units

  • Air Sampling / Monitoring Equipments

  • Cable Pressurization

  • Liquid / Semisolid dispenser

  • Food Processing and Packaging Applications

  • Sorting / Counting of Cards / Envelopes / Papers

  • Beverage Bottling / Labeling / Drying/Ink Jet Coding

  • Safe and Economical Personal Cleaning Solutions

  • Environmental / Pollution Control and safety equipments

  • During Printing Feed / Transfer of Paper Sheets / Ink Drying

  • Agitation of Liquid Bath for Vegetables and Fruits Washing

  • Provide Air Cushion to Handle Delicate Material like Eggs / Glass

  • Air Curtain, Protection from Dust Ingress and Isolation applications

  • Agricultural Pesticides and Fertilizer Mixing and Spraying Applications

  • Keeping Yarn / Threads / Product in place during processing / sewing / knitting

  • To Suck Debris / Gases from Clean Rooms / Enclosed Spaces /
    Tunnels / Laboratories

  • To Agitate and Aerate Water in Spa / Whirlpool/ Swimming Pool / Fishing Tanks / Aqua Culture Tanks / Plating Tanks / Concrete / Laundry

Turbine Blowers / Vacuum Blowers - Data Summary

RING BLOWERS DATA FOR GENERAL APPLICATIONS

TD-3: For 220AC / 50Hz / 1 phase Model Click here

TD-4: For 115VAC / 50Hz / 1 Phase Model Click here

The Ring Blowers / Side Channel Blowers / Regenerative Blowers / Turbine Blowers are suitable for all those applications requiring considerably higher pressure, than those which can be achieved using centrifugal fans. Side Channel exhausters are used in all those applications requiring an operating vacuum higher than the one achievable by a fan, but not as to require the use of a vacuum pump. The rotating parts are not in contact with the casing. There is, therefore, no friction during operation and thus no internal lubrication is necessary. The other main features are:

MODEL NO POWER
(Kw)
MAX FLOW
(M3 / Hr)
Mx.PRESSURE (mbar) MAX VACUUM (mbar) CONNECTION SIZE (inch)
10 0.20 55 80 70 1
11 0.25 70 110 110 1
21 For more Technical Information Click here 0.25 80 110 100 1 1/4
21For more Technical Information Click here 0.40 80 130 120 1 1/4
23For more Technical Information Click here 0.25 105 70 80 1 1/4
23For more Technical Information Click here 0.40 105 130 120 1 1/4
23For more Technical Information Click here 0.7 105 140 120 1 1/4
31For more Technical Information Click here 0.55 100 120 110 1 1/4
31For more Technical Information Click here 0.7 100 150 150 1 1/4
33For more Technical Information Click here 0.55 140 60 60 1 1/4
33For more Technical Information Click here 0.75 140 100 100 1 1/4
41For more Technical Information Click here 0.7 145 120 120 1 1/2
41For more Technical Information Click here 0.85 145 160 160 1 1/2
41For more Technical Information Click here 1.3 145 200 170 1 1/2
43For more Technical Information Click here 0.7 180 70 70 1 1/2
43For more Technical Information Click here 0.85 180 100 110 1 1/2
43For more Technical Information Click here 1.3 180 180 180 1 1/2
49For more Technical Information Click here 0.55 140 120 120 1 1/2
51For more Technical Information Click here 0.85 210 100 110 2
51For more Technical Information Click here 1.3 210 170 170 2
51For more Technical Information Click here 1.6 210 190 200 2
51For more Technical Information Click here 2.2 210 270 220 2
53For more Technical Information Click here 0.85 270 40 40 2
53For more Technical Information Click here 1.3 270 110 120 2
53For more Technical Information Click here 1.6 270 150 160 2
53For more Technical Information Click here 2.2 270 230 220 2
59For more Technical Information Click here 1.1 210 150 130 2
61For more Technical Information Click here 1.6 265 180 170 2
61For more Technical Information Click here 2.2 265 220 235 2
61For more Technical Information Click here 3.0 265 280 280 2
63For more Technical Information Click here 1.6 345 125 125 2
63For more Technical Information Click here 2.2 345 195 200 2
63For more Technical Information Click here 3.0 345 220 240 2

MODEL NO POWER
(Kw)
MAX FLOW
(M3 / Hr)
Mx.PRESSURE (mbar) MAX VACUUM (mbar) CONNECTION SIZE (inch)
71For more Technical Information Click here 1.6 318 150 160 2
71For more Technical Information Click here 2.2 318 190 190 2
71For more Technical Information Click here 3.0 318 270 260 2
71For more Technical Information Click here 4.0 318 360 290 2
73For more Technical Information Click here 1.6 420 100 100 2
73For more Technical Information Click here 2.2 420 170 180 2
73For more Technical Information Click here 3.0 420 200 220 2
73For more Technical Information Click here 4.0 420 280 260 2
74For more Technical Information Click here 4.0 500 140 150 2
74For more Technical Information Click here 5.5 500 260 240 2
74For more Technical Information Click here 7.5 500 320 240 2
79For more Technical Information Click here 2.2 320 200 160 2
81For more Technical Information Click here 4.0 530 200 200 2 1/2
81For more Technical Information Click here 5.5 530 300 300 2 1/2
81For more Technical Information Click here 7.5 530 430 320 2 1/2
81For more Technical Information Click here 8.6 620 400 350 2 1/2
83For more Technical Information Click here 4.0 700 140 150 2 1/2
83For more Technical Information Click here 5.5 700 190 200 2 1/2
83For more Technical Information Click here 7.6 700 260 270 2 1/2
84For more Technical Information Click here 7.5 900 180 200 2 1/2
84For more Technical Information Click here 11.0 900 370 280 2 1/2
91For more Technical Information Click here 8.50 1050 190 190 4
91For more Technical Information Click here 12.50 1050 280 290 4
91For more Technical Information Click here 18.50 1050 460 360 4
93For more Technical Information Click here 8.50 1370 110 120 4
93For more Technical Information Click here 12.50 1370 180 190 4
93For more Technical Information Click here 18.50 1370 320 310 4
94For more Technical Information Click here 15.00 1940 110 130 4
94For more Technical Information Click here 20.00 1940 200 220 4
94For more Technical Information Click here 25.00 1940 280 310 4
94.3For more Technical Information Click here 15.00 2050 170 160 4
94.3For more Technical Information Click here 20.00 2050 230 250 4
94.3For more Technical Information Click here 25.00 2050 280 310 4
